26" Fat-Tire 48V/52V 1500W Rear Hub Motor Kit

26" Fat-Tire 48V/52V 1500W Rear Hub Motor Kit

Complete 26 × 4.0" fat-bike rear hub kit: 1500W gearless motor on a 26 × 3" double-wall rim, 18-MOSFET 40A controller, LCD and twist throttle.

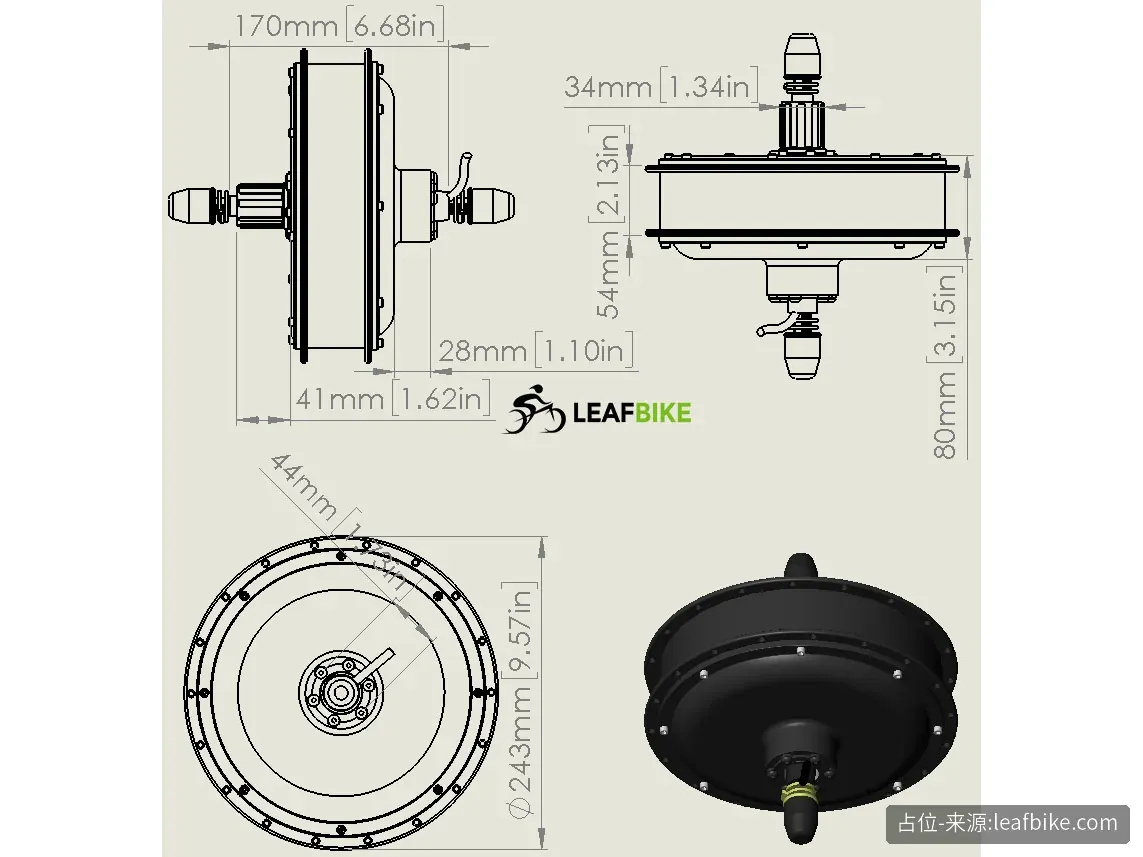

1500W brushless gearless rear hub, laced to a 26 × 3" double-wall rim for 4.0" tires
Two frame widths: 170 mm or 190 mm rear spacing
Freewheel or cassette version
48V/52V 18-MOSFET controller, 40A max current
LCD, twist throttle, brake levers, cruise switch and PAS sensor in the box

Fat bikes have wide rear ends that standard hub kits do not fit. This kit is built specifically for them, with a motor axle for 170 mm or 190 mm spacing and a wide 26 × 3” rim ready for 4-inch tires.

It ships as a complete system — motor wheel, controller, display and controls — so a dealer can convert a beach or snow bike without sourcing parts separately.

Specifications

Parameter	Value
Motor	1500W brushless gearless (BLDC) rear hub
Controller	48V/52V 18-MOSFET, 40A ±1A max, 155 × 72 × 38 mm
Display	LCD (S830 / SW900 / 08HU / 08SU options)
Throttle	Twist
BB / dropout	Rear spacing 170 mm or 190 mm; cable exits left axle end
Brake compatibility	Disc
Battery compatibility	48V or 52V battery (not included); controller low-voltage cut 40 ±0.5V

Models & specifications

Variant	Wheel size	Voltage
170 mm dropout, freewheel	26”	48 / 52 V
170 mm dropout, cassette	26”	48 / 52 V
190 mm dropout, freewheel	26”	48 / 52 V
190 mm dropout, cassette	26”	48 / 52 V

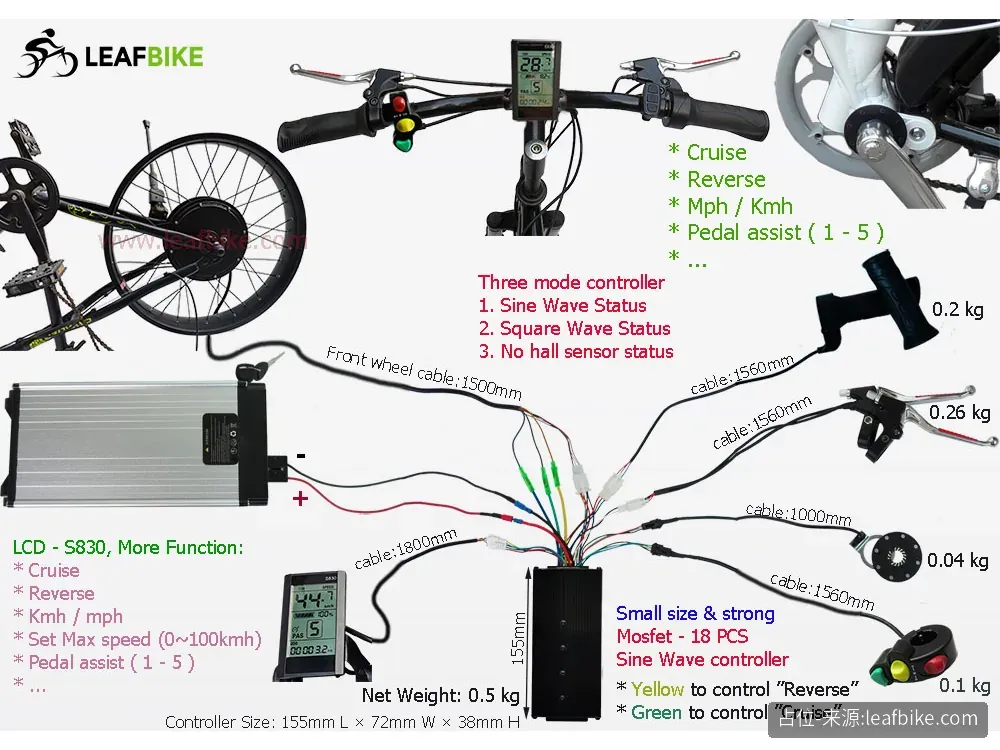

What’s in the box

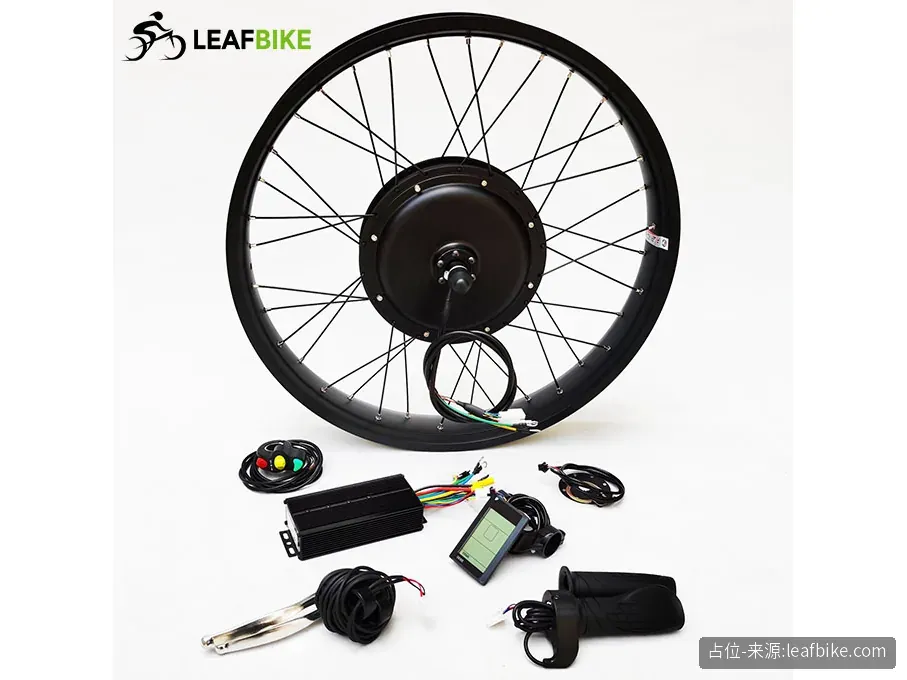

26” 48V/52V 1500W rear hub motor wheel (for 26 × 4.0” tire)
48V/52V 18-MOSFET controller
LCD display
Twist throttle (1500 mm cable)
Brake levers (1500 mm cable)
Three-button switch for cruise and functions (1500 mm cable)
Pedal assist sensor (900 mm cable)

Highlights

Fat-bike specific: 170 mm or 190 mm rear spacing, 26 × 3” double-wall rim.
Controller: 18 MOSFETs, aluminium housing, 40A max current.
LCD functions: Cruise, assist levels 0–5, km/h or mph, battery gauge; reverse optional.
Speed setting: Default top speed 68.6 km/h, lower limits selectable.

FAQ

Which frame widths does it fit?

170 mm or 190 mm rear dropout spacing — choose when ordering.

Can the top speed be lowered?

Yes, the seller lists lower speed settings as an option.

Wholesale, quote-only. Tell us your quantity, target market and required configuration (voltage, display, wheel size / BB width) and we will reply with a quotation.
