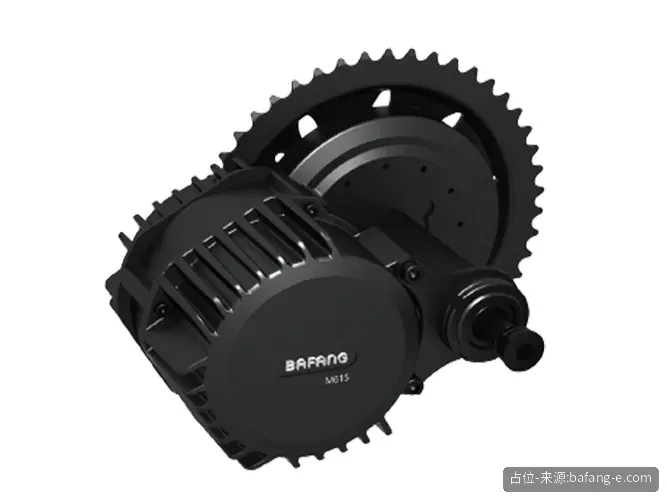

The BBSHD is the heavy-duty member of Bafang’s bolt-on BBS family, listed by Bafang as the M615 (MM G320.750/1000.C). It slides through a standard threaded bottom bracket and drives the chain directly, so the bike keeps its own gears and the motor works at an efficient cadence.
This kit is aimed at cargo, speed and off-road builds that need more torque than the BBS02. A 1000W rating exceeds the EU 250W pedelec limit, so it is intended for markets and uses where that power level is permitted.
We supply the kit in a UART or a CAN version: the controller is flashed with the matching firmware for each order, and a throttle can be added as an option.
Specifications
| Parameter | Value |
|---|
| Peak power | ~1500W |
| Motor | Bafang M615 / MM G320.1000.C (BBSHD) |
| Motor weight | 5.6 kg |
| Pedal sensor | Cadence |
| Controller | Integrated in motor, 12-MOSFET; UART or CAN firmware (flashed per order) |
| Display | Selectable colour display, UART or CAN to match the firmware (e.g. 500C / DP C18) |
| Throttle | Thumb (optional) |
| Certifications | CE / RoHS / EN 14764 |
| Battery compatibility | 48V (13S) or 52V (14S) Li-ion; not 36V; pack charge voltage must stay below 60V |
Models & specifications
| Variant | Voltage |
|---|
| 68 mm BB (fits 68–73 mm) | 48 / 52 V |
| 100 mm BB (fat bike) | 48 / 52 V |
| 120 mm BB (fat bike) | 48 / 52 V |
What’s in the box
- BBSHD motor with integrated controller
- Colour display with button pad (UART or CAN, matching the firmware)
- Thumb throttle (optional)
- Chainwheel with chain cover (44/46/48/52T)
- Left and right crank arms
- 2 × brake levers or brake sensors (option)
- Speed sensor and magnet
- Waterproof quick-release wiring
- Fixing plate, 2 × M33 nuts and mounting screws (spare screws for 73 mm BB)
- Front light
- Bafang wrench and crank puller
Highlights
- Integrated controller: The 12-MOSFET controller sits inside the motor case, which keeps wiring short and the install tidy.
- Wide BB range: Bafang lists housing variants for 68/73/83/90/100/110/120 mm shells.
- Gear-sensor ready: Resellers ship current units with a dedicated gear-shift sensor port and a light output (6 V / 3 W max).
- Water resistance: Rated IP X5 by Bafang.
FAQ
Can I use a 36V battery?
No. EM3ev states the BBSHD controller only works with 48V (13S) or 52V (14S) packs.
Which bottom-bracket widths are available?
68 mm (also fits 73 mm with longer bolts), 100 mm and 120 mm versions are offered by resellers.
UART or CAN?
Both. The controller firmware is flashed to UART or CAN to match your order, and the display is supplied to match.
Is a throttle included?
A thumb throttle is optional; tell us if you want it in the kit.
Wholesale, quote-only. Tell us your quantity, target market and required configuration (voltage, display, wheel size / BB width) and we will reply with a quotation.
