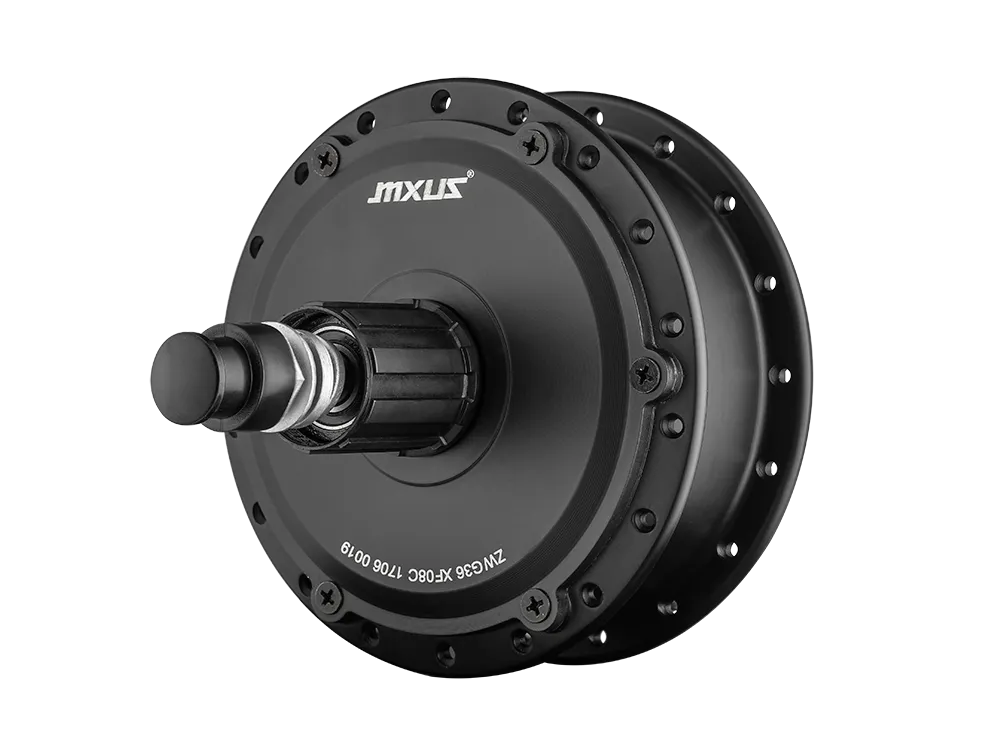

Geared Cassette Hub Motors

MXUS geared cassette rear hub motors, 250-750W at 36V/48V — 8-9 speed cassette interface, 142-145mm dropouts, 16"-28" wheels, IP54, for modern drivetrains.

Brand: MXUS
Voltage: 36V / 48V
Rated power: 250-750W
Application: Rear-wheel drive e-bikes with 8-9 speed cassette drivetrains

Cassette (not threaded freewheel) interface for modern 8-9 speed drivetrains
Planetary gear reduction (1:4.4 to 1:5.8) for high torque density
142mm and 145mm rear dropout options
IP54 waterproof rating, 24/96h salt-spray tested
≤55-60 dB noise level, ≥78% efficiency

Geared rear hub motors with a cassette interface instead of a threaded freewheel — the right choice for modern frames and drivetrains, where 8-9 speed cassettes, wider dropouts and disc brakes are standard. Three power classes cover commuters through 750W trekking builds.

These are wholesale, quote-only motors. Tell us your frame’s dropout width, cassette speed count and target power and we’ll confirm the matching model and pricing.

Models & specifications

Model	Voltage	Rated power	Reduction	Dropout	Cassette	Wheel sizes	Weight	Top speed
GDC-08	36V/48V	250W	1:4.4	145mm	8-9s	16”-28”	3.0 kg	25-28 km/h
GDC-15	36V/48V	250-500W	1:5	145mm	8-9s	16”-28”	3.9 kg	25-40 km/h
GDC-19	36V/48V	500/750W	1:5.8	142mm	8-9s	20”-28”	5.0 kg	25-45 km/h

All models: IP54 waterproof rating, ≥78% efficiency, -20 °C to 45 °C operating range, 24/96h salt-spray tested, V-brake and disc-brake compatible, shaft cable exit.

Highlights

Modern drivetrain fit: true cassette spline takes standard 8-9 speed cassettes — no threaded freewheel compromises.
Torque-dense: planetary reduction delivers strong hill-climbing assist without direct-drive weight.
OEM-ready range: 250W commuter through 750W trekking classes from one motor family.
