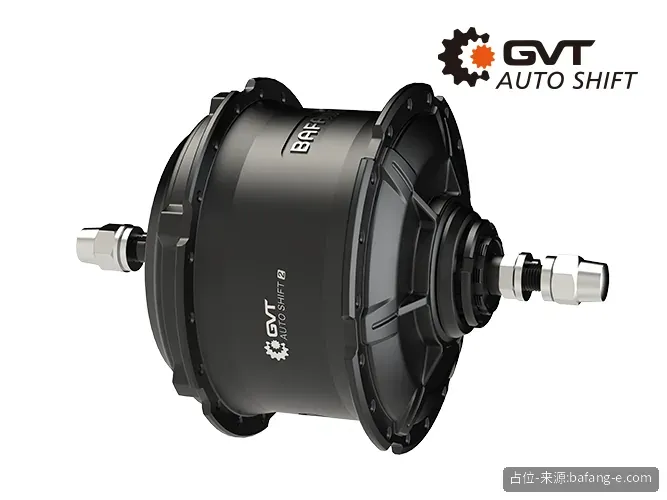

Bafang H720 Auto Dual-Speed Fat-Tire Rear Hub Motor, 250–1000W
Bafang H720 rear hub motor for eFat bikes: 250-1000W rated, up to 60 , 85 , 100 N·m, 36 / 48 / 52 V, 4.8–5.4 kg, IP X6. Wholesale, quote-only supply.
At a glance
- Brand
- Bafang
- Voltage
- 36V / 48V / 52V
- Rated power
- 250–1000W
- Application
- eFat
-
✓
250-1000W rated power, up to 60 , 85 , 100 N·m max torque (Bafang "peak locked" value)
-
✓
36 / 48 / 52 V nominal system voltage
-
✓
For 20" / 26" fat-tire wheels; 175 mm over-locknut dimension
-
✓
8–5.4 kg motor weight
-
✓
Disc brake compatible; IP X6 rated
-
✓
Built-in automatic two-speed gearbox (1 : 1 and 1 : 1.36) switches by vehicle speed
Get a Quote The H720 is a Bafang rear hub motor positioned for eFat bikes. Bafang lists it as Bafang H720 Auto Dual-Speed Fat-Tire Rear Hub Motor, 250–1000W in its OEM catalogue and 2027 workbook, which are the sources for every figure on this page.
Bafang notes that its torque figures are “peak locked” values that can be reconfigured for an application and battery, so the torque you get depends on the controller set-up. Its built-in two-speed gearbox shifts automatically with road speed, giving stronger pull at low speed and a taller ratio for cruising, and it takes a single sprocket or a belt drive.
This is an OEM motor sold bare (no rim or kit parts); confirm wheel size, cable length/connector and freewheel or sprocket before ordering.
Specifications
| Parameter | Value |
|---|
| Motor type | Geared |
| Position | Rear |
| Gear reduction | Automatic dual speed, ratio 1 / 1.36 |
| Max torque | 100 N·m |
| Brake compatibility | Disc |
| IP rating | IPX6 |
| Certifications | CE / UL2849 |
Models & specifications
| Model | Position | Voltage | Rated power | Reduction | Dropout | Freewheel | Wheel sizes | Weight | Top speed |
|---|
| RM G06A2.250.D | Rear | 36 / 48 V | 250 W | Auto 2-speed (1 / 1.36) | 175 mm | Single sprocket 16T/18T/20T/22T or belt | 20” / 26” fat | 4.8 kg | 25–32 km/h |
| RM G06A2.750.D | Rear | 48 / 52 V | 750 W | Auto 2-speed (1 / 1.36) | 175 mm | Single sprocket 16T/18T/20T/22T or belt | 20” / 26” fat | 5.4 kg | 45 km/h |
| RM G06A2.1000.D | Rear | 48 / 52 V | 1000 W | Auto 2-speed (1 / 1.36) | 175 mm | Single sprocket 16T/18T/20T/22T or belt | 20” / 26” fat | 5.4 kg | 45 km/h |
Highlights
- Rated power: 250-1000W.
- Max torque: 60 , 85 , 100 N·m (reconfigurable peak).
- Certifications: IPX6 / CE / UL2849.
FAQ
Bafang lists it as a peak locked parameter that can be reconfigured depending on application and battery.
Does it come laced in a wheel?
Bafang lists the bare motor; spoke specification is given for wheel building.
Wholesale, quote-only. Tell us the quantity, wheel size, dropout, cable/connector and brake type you need and we will reply with a quotation.
