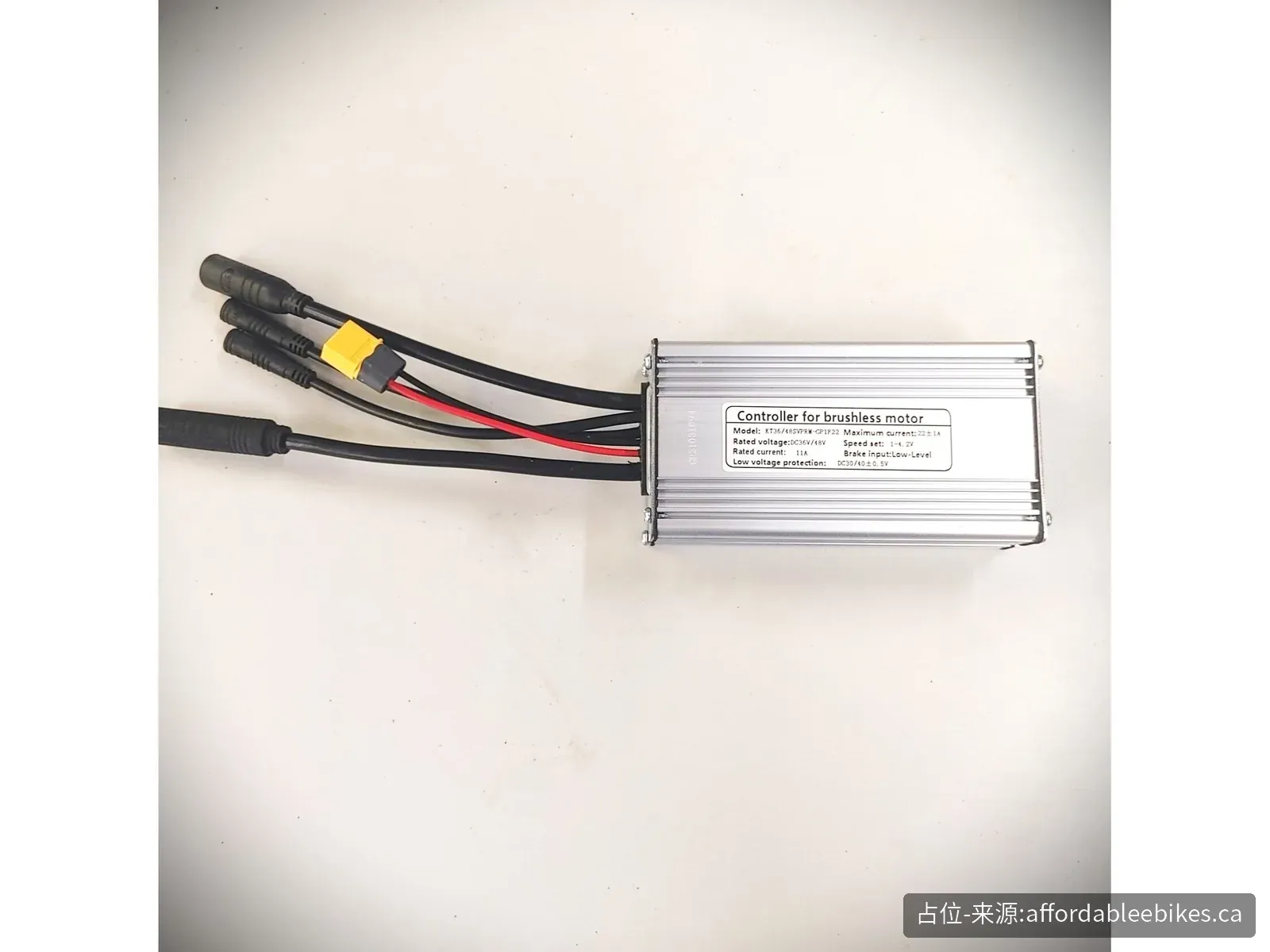

KT (Kunteng) controllers are a common choice in hub-motor conversion kits because the same controller family works across 36V and 48V systems and pairs with the KT LCD display range.
This 22A version uses sine-wave drive and fully waterproof Julet-style connectors: a 9-pin plug to the motor and a 5-to-1 harness for throttle, brake levers and display. The retailer notes an XT60 battery connector and a light output switched from the display.
KT’s own site did not respond during research, so only retailer data is listed; electrical limits such as rated current and low-voltage cut-off still need the factory datasheet.
Specifications
| Parameter | Value |
|---|
| Current limit | 22 A |
| Control mode | Sine-wave (FOC not stated) |
| Display compatibility | LCD |
Models & specifications
| Model | Voltage | Current limit | Display |
|---|
| KT 36/48V 22A (WP, Julet) | 36 / 48 V | 22 A | LCD |
Highlights
- KT ecosystem: Pairs with KT LCD3 / LCD5 / LCD8 displays.
- Waterproof wiring: All connections use Julet waterproof plugs.
FAQ
Does it work with non-KT displays?
The retailer lists KT LCD3 / LCD5 / LCD8; plan on KT-protocol displays.
What battery plug does it use?
The current version ships with an XT60 male connector.
Wholesale, quote-only. Tell us the quantity, battery voltage, motor model and connector standard you need and we will reply with a quotation.
