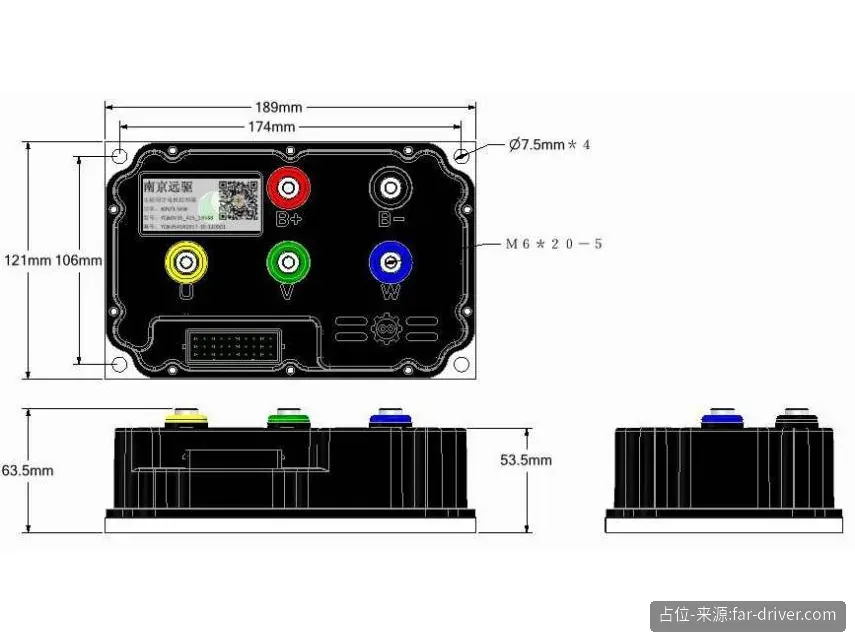

The ND series from Fardriver (Nanjing Yuanqu Technology) is a family of hall-sensor vector controllers for hub-motor and mid-motor vehicles above typical e-bike power levels. Both models listed here share the same 189 × 121 × 63.5 mm potted housing and a 48–72V operating range.
Current limits, forward/reverse speeds, economy speed and throttle response are all adjustable through the configuration software, and the controller supports energy feedback (regen). Fault codes cover hall and throttle faults, over-current, voltage out of range, motor and controller over-temperature and phase short circuit.
Power levels are well above EU pedelec limits; these are for off-road, L-category or export builds.
Specifications
| Parameter | Value |
|---|
| Current limit | 80 A / 300 A / 120 A / 400 A |
| Control mode | Sine-wave FOC |
| Housing | Potted |
| Housing material | Aluminum |
| Motor sensor | Hall |
| Configuration | USB |
| Protections | Over-current / Over/under-voltage / Over-temperature / Short-circuit |
| Operating temperature | -30–55°C |
Models & specifications
| Model | Housing | Dimensions | Voltage | Current limit | Motor sensor | Weight |
|---|
| ND72240 | Potted | 189 × 121 × 63.5 mm | 48 / 60 / 72 V | 80 A | Hall | 1700 g |
| ND72330 | Potted | 189 × 121 × 63.5 mm | 48 / 60 / 72 V | 120 A | Hall | 1700 g |
Highlights
- Vector control: Dual current-loop control with field-weakening support.
- Tunable: Bus and phase current, speeds and throttle curve are adjustable.
- Sealed: Fully potted electronics with aluminium heat sink.
FAQ
Is it suitable for EU pedelecs?
No. These controllers are for high-power vehicles well above 250W.
Which motors does it support?
Hall-sensor permanent-magnet motors; parameters must be matched to the motor.
Wholesale, quote-only. Tell us the quantity, battery voltage, motor model and connector standard you need and we will reply with a quotation.
