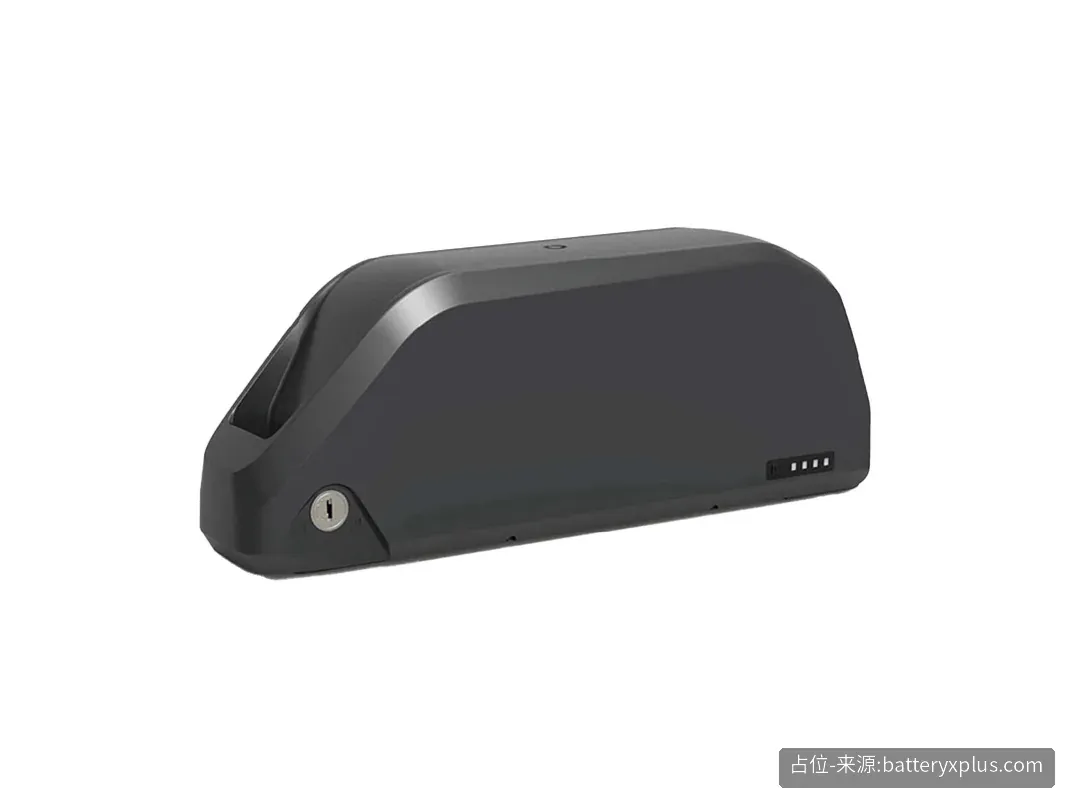

DP6 and DP9 share the Polly 368 × 90 mm footprint and differ in height (113 mm and 141 mm). That extra height turns the same frame mount into a 70- or 91-cell pack, which suits fat-tire and cargo builds that need range.

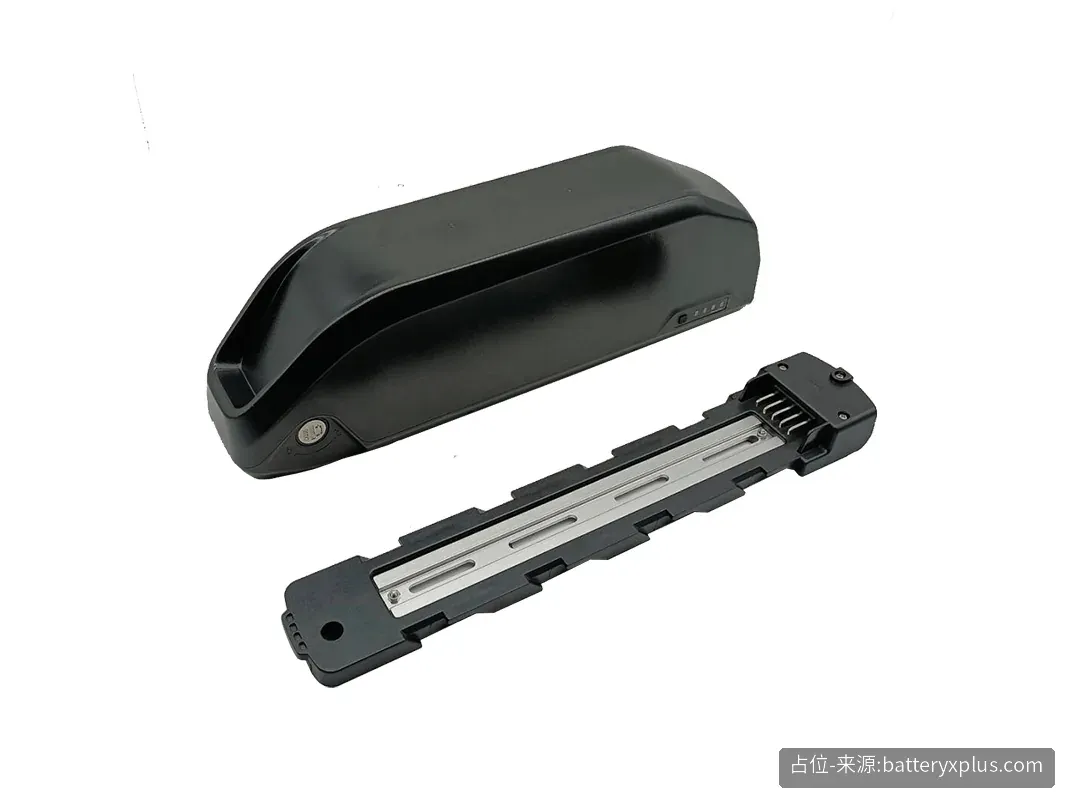

Both come with the 18650 cell holders, a mounting plate and a lock with two keys. The DP6 is offered with a 48V or 52V charge indicator.
Specifications
| Parameter | Value |
|---|
| Removal style | Push-to-release |
| Max layout | 10S9P (91 × 18650) |
Models & specifications
| Model | Max cells | Layouts | Lock | Gauge | Dimensions |
|---|
| DP6 | 70 × 18650 | 10S7P 36V / 13S5P 48V / 14S5P 52V | Mechanical lock, 2 keys | 48V or 52V indicator (option) | 368 × 90 × 113 mm |
| DP9 | 91 × 18650 | 10S9P 36V / 13S7P 48V / 14S6P 52V | Mounting plate with lock/key | — | 368 × 90 × 141 mm |
What’s in the box
Case only, no cells, BMS or nickel strip (nickel strip optional where noted)
Highlights
- ****: 70 or 91 × 18650 cells.
- ****: 36V / 48V / 52V layouts up to 14S6P.
FAQ
Are cells included?
No. This is an empty enclosure; cells, BMS and wiring are not included.
What voltage can I build?
See the layouts in the model table; the charge gauge voltage must match the pack.
Wholesale, quote-only enclosures (case only, no cells or BMS). Tell us the cell format, S/P layout, voltage of the charge gauge and quantity and we will reply with a quotation.
