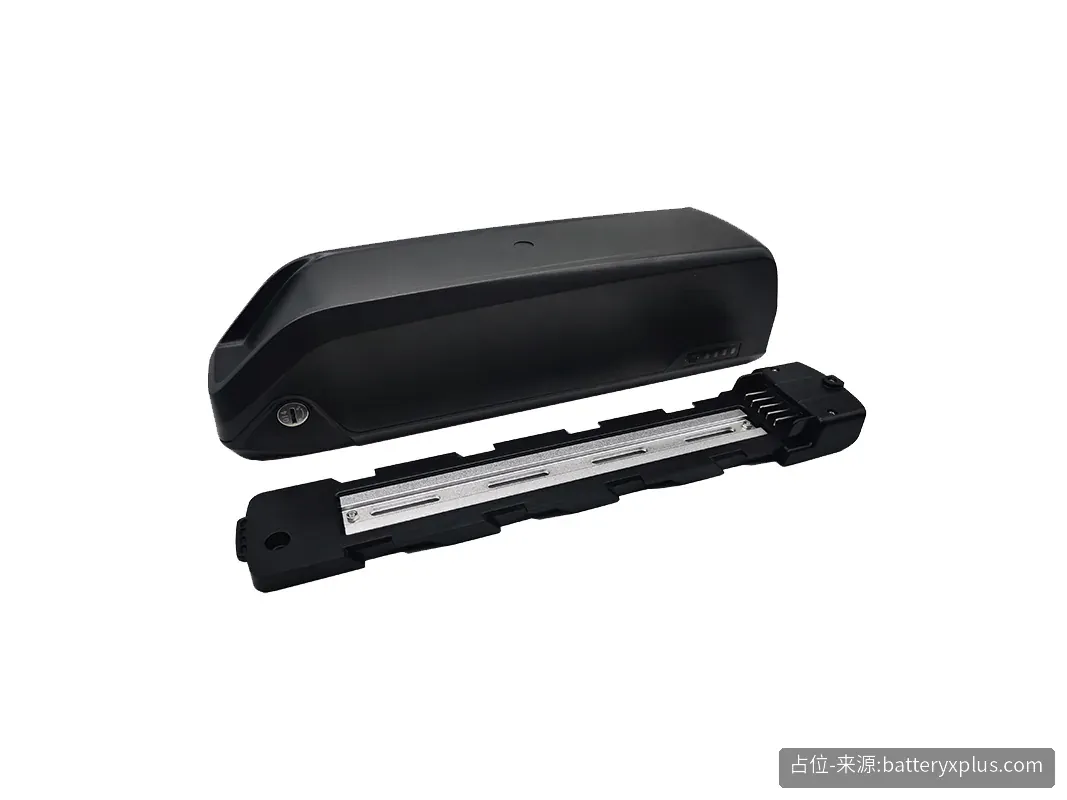

Low-profile Polly DP5 down-tube case, 368 × 90 × 96 mm, for 36V, 48V or 52V packs up to 56 cells, with a USB port next to the charge port.
At a glance
At 96 mm tall the DP5 is the slimmest Polly shell in this group, meant for frames where a taller case would foul the bottle bosses or front derailleur.
The retailer lists it with a USB port and charging port. Cell format is listed inconsistently (21700 in the title, 18650 layouts in the pack suggestions), so the cell holder type must be confirmed before ordering.
| Parameter | Value |
|---|---|
| Max layout | 14S4P |
| Model | Layouts | Lock | Dimensions |
|---|---|---|---|
| DP5 | 10S5P 36V / 13S4P 48V / 14S4P 52V | Mounting plate with lock | 368 × 90 × 96 mm |
Case only, no cells, BMS or nickel strip (nickel strip optional where noted)
No. This is an empty enclosure; cells, BMS and wiring are not included.
See the layouts in the model table; the charge gauge voltage must match the pack.
Wholesale, quote-only enclosures (case only, no cells or BMS). Tell us the cell format, S/P layout, voltage of the charge gauge and quantity and we will reply with a quotation.
