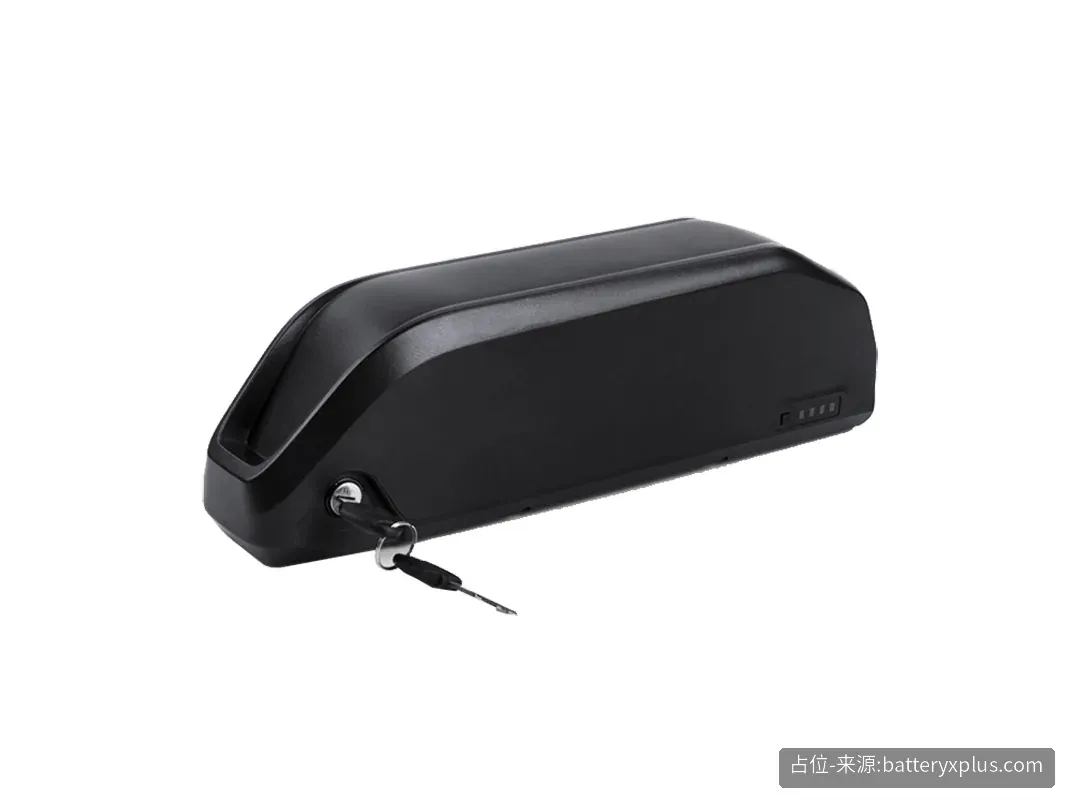

The DP-2170 cases are the 21700 versions of the Polly down-tube shape. Both share a 368 × 95 mm footprint; the 5C is taller (125 mm against 106 mm) to take one more parallel row, so a 36V or 48V pack can be built in either size.
Each case comes with the internal cell holder, a mounting plate, a mechanical lock with two keys and a charge indicator. Retailers sell matching nickel strip sets for the listed layouts as an option.
Specifications
| Parameter | Value |
|---|
| Removal style | Push-up release |
| Max layout | 13S4P (52 × 21700) |
Models & specifications
| Model | Variant | Max cells | Layouts | Lock | Gauge | Dimensions |
|---|
| DP-2170-4C | 40-cell | 40 × 21700 (39 for 13S3P) | 10S4P 36V / 13S3P 48V | Mechanical lock, 2 keys | 48V power indicator | 368 × 95 × 106 mm |
| DP-2170-5C | 52-cell | 52 × 21700 (50 for 10S5P) | 10S5P 36V / 13S4P 48V | Mechanical lock, 2 keys | Power indicator | 368 × 95 × 125 mm |
What’s in the box
Case only, no cells, BMS or nickel strip (nickel strip optional where noted)
Highlights
- ****: 40 or 52 × 21700 cells.
- ****: 10S4P / 13S3P or 10S5P / 13S4P layouts.
FAQ
Are cells included?
No. This is an empty enclosure; cells, BMS and wiring are not included.
What voltage can I build?
See the layouts in the model table; the charge gauge voltage must match the pack.
Wholesale, quote-only enclosures (case only, no cells or BMS). Tell us the cell format, S/P layout, voltage of the charge gauge and quantity and we will reply with a quotation.
