The Hailong shape is one of the most common down-tube battery outlines, and the MAX (G80) is its largest version. It takes 78 × 18650 cells with the supplied holders, or 65 × 21700 cells built without holders, which allows a 48V 13S5P 21700 pack.

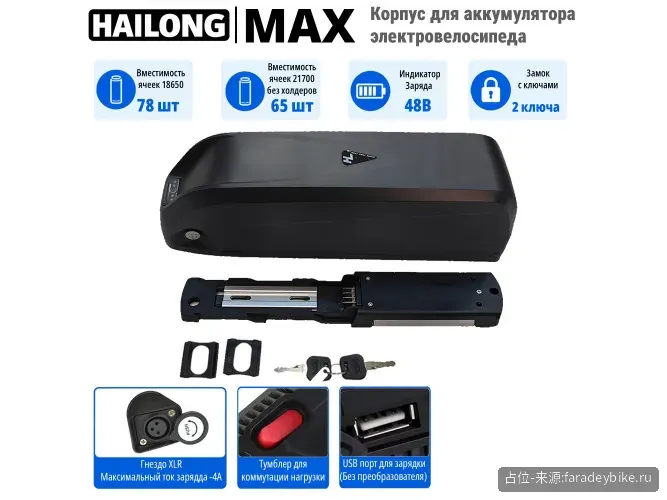

The kit includes the shell and lid, a mounting plate with contact group, rubber spacers, a lock with two keys, an XLR charge socket, 18650 holders, a frame rail and a 4-segment 48V indicator. The seller advises a BMS no thicker than 14 mm for 18650 builds and 10 mm for 21700.
Specifications
| Parameter | Value |
|---|
| Max layout | 13S5P (21700) / 78 × 18650 |
Models & specifications
| Model | Max cells | Layouts | Charge port | Discharge | Lock | Gauge | Dimensions | BMS space |
|---|
| Hailong MAX (G80) | 78 × 18650 / 65 × 21700 (21700 without holders) | e.g. 13S5P 48V (21700) | XLR | Contact group on mounting plate | Lock with 2 keys | 4-segment 48V indicator | 368 × 127 × 90 mm | BMS ≤14 mm thick (18650) / ≤10 mm (21700) |
What’s in the box
Case only, no cells, BMS or nickel strip (nickel strip optional where noted)
Highlights
- ****: 78 × 18650 or 65 × 21700 cells.
- ****: 368 × 127 × 90 mm ABS shell.
FAQ
Are cells included?
No. This is an empty enclosure; cells, BMS and wiring are not included.
What voltage can I build?
See the layouts in the model table; the charge gauge voltage must match the pack.
Wholesale, quote-only enclosures (case only, no cells or BMS). Tell us the cell format, S/P layout, voltage of the charge gauge and quantity and we will reply with a quotation.
