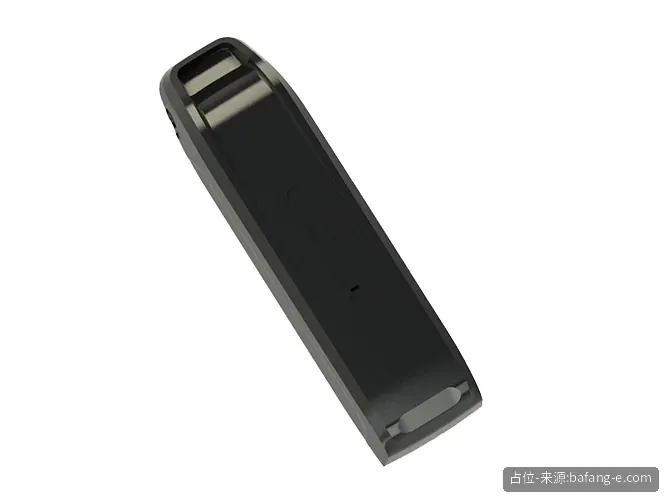

The F501 mounts on the outside of the down tube and slides upwards off its base, so it fits frames that have no integrated battery bay. One 366 mm housing covers 36V 540/720 Wh and 48V 748 Wh.
Bafang lists this battery in the Downtube group of its OEM component catalogue and in the 2027 OEM workbook. Every figure on this page comes from those two sources; Bafang does not publish chemistry details, cycle life or weight for it, so ask for the cell datasheet before ordering.
The pack is supplied to bike makers as an OEM part. Check the frame interface, lock and connector version against your frame before placing an order.
Specifications
| Parameter | Value |
|---|
| Cell format | 21700 |
| Certifications | UN38.3 / MSDS / CE / UL2271 / ISO13849 / EN50604 |
Models & specifications
| Model | Mount style | Voltage | Capacity | Energy | Dimensions | Notes |
|---|
| BT F501.B540.C | Downtube | 36 V | 15 Ah | 540 Wh | 366 × 99 × 96 mm | Certs: UN38.3 / MSDS / CE / ISO13849 / EN50604; removal slide up; charger 3A |
| BT F501.B720.C | Downtube | 36 V | 20 Ah | 720 Wh | 366 × 99 × 96 mm | Certs: UN38.3 / MSDS / CE / ISO13849 / EN50604; removal slide up; charger 3A |
| BT F501.D748.C | Downtube | 48 V | 15.6 Ah | 748 Wh | 366 × 99 × 96 mm | Certs: UN38.3 / MSDS / CE / ISO13849 / EN50604; removal slide up; charger 3A |
Highlights
- Mount: Down-tube mounted.
- Energy: 540 / 720 / 748 Wh.
- Ingress: IP X6.
FAQ
Which chemistry and cycle life?
Bafang does not publish chemistry or cycle life for this pack; we ask the factory for the cell datasheet on request.
Is it compatible with non-Bafang systems?
Bafang supplies it as part of its own drive systems; communication with other controllers is not stated.
Wholesale, quote-only. Tell us the voltage, capacity, frame interface and quantity you need and we will reply with a quotation.
