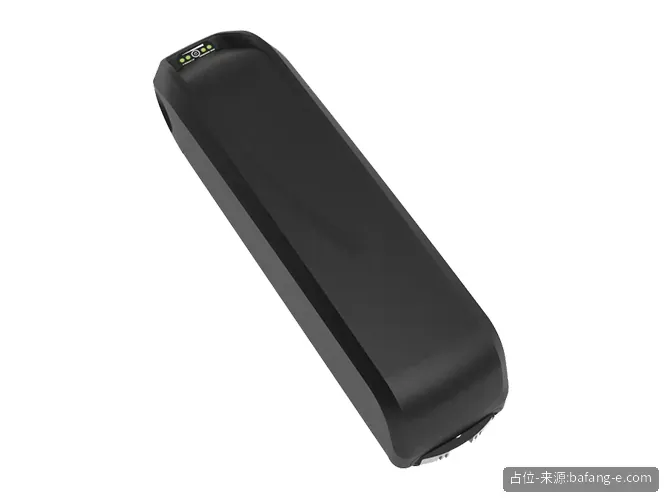

Bafang BT F150 downtube e-bike battery: 48 V, 14 Ah (672 Wh), 18650 cells, IP X6. Wholesale, quote-only supply.
At a glance
The F150 is a 48V 14Ah (672 Wh) down-tube pack built on 18650 cells and listed with UL2271. Bafang groups it with its down-tube batteries; the removal type is given only as “Additive”.
Bafang lists this battery in the Downtube group of its OEM component catalogue and in the 2027 OEM workbook. Every figure on this page comes from those two sources; Bafang does not publish chemistry details, cycle life or weight for it, so ask for the cell datasheet before ordering.
The pack is supplied to bike makers as an OEM part. Check the frame interface, lock and connector version against your frame before placing an order.
| Parameter | Value |
|---|---|
| Cell format | 18650 |
| Certifications | UN38.3 / MSDS / UL2271 / ISO13849 |
| Model | Mount style | Voltage | Capacity | Energy | Dimensions | Notes |
|---|---|---|---|---|---|---|
| BT F150.672.C | Downtube | 48 V | 14 Ah | 672 Wh | 367 × 90 × 91 mm | Certs: UN38.3 / MSDS / ISO13849 / UL2271; removal “Additive” (Bafang wording); charger 3A |
Bafang does not publish chemistry or cycle life for this pack; we ask the factory for the cell datasheet on request.
Bafang supplies it as part of its own drive systems; communication with other controllers is not stated.
Wholesale, quote-only. Tell us the voltage, capacity, frame interface and quantity you need and we will reply with a quotation.
