Bafang BT C02 rear rack e-bike battery: 36 V, 17.5 Ah (630 Wh), 18650 cells, IP X6. Wholesale, quote-only supply.
At a glance

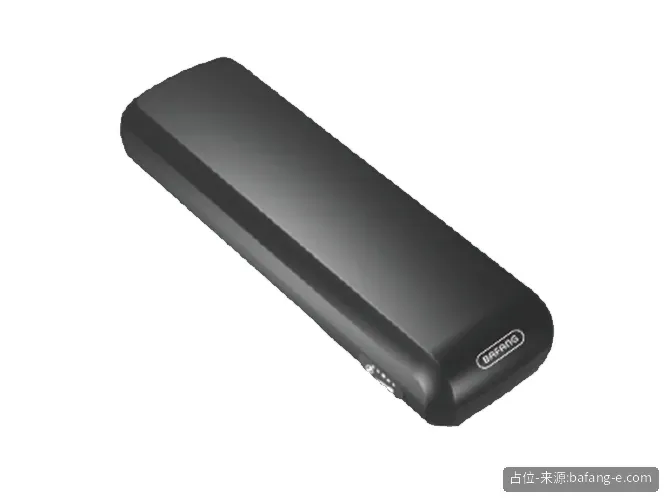

The C02 is a rear-rack pack for city and cargo bikes: 36V 17.5Ah (630 Wh) on 18650 cells, removed towards the rear, with CE and EN50604 for the EU market.
Bafang lists this battery in the Rear rack group of its OEM component catalogue and in the 2027 OEM workbook. Every figure on this page comes from those two sources; Bafang does not publish chemistry details, cycle life or weight for it, so ask for the cell datasheet before ordering.
The pack is supplied to bike makers as an OEM part. Check the frame interface, lock and connector version against your frame before placing an order.
| Parameter | Value |
|---|---|
| Cell format | 18650 |
| Certifications | UN38.3 / MSDS / CE / ISO13849 / EN50604 |
| Model | Mount style | Voltage | Capacity | Energy | Dimensions | Notes |
|---|---|---|---|---|---|---|
| BT C02.B630.C | Rear rack | 36 V | 17.5 Ah | 630 Wh | 409.6 × 130 × 70 mm | Certs: UN38.3 / MSDS / CE / ISO13849 / EN50604; removal rear; charger 3A |
Bafang does not publish chemistry or cycle life for this pack; we ask the factory for the cell datasheet on request.
Bafang supplies it as part of its own drive systems; communication with other controllers is not stated.
Wholesale, quote-only. Tell us the voltage, capacity, frame interface and quantity you need and we will reply with a quotation.
