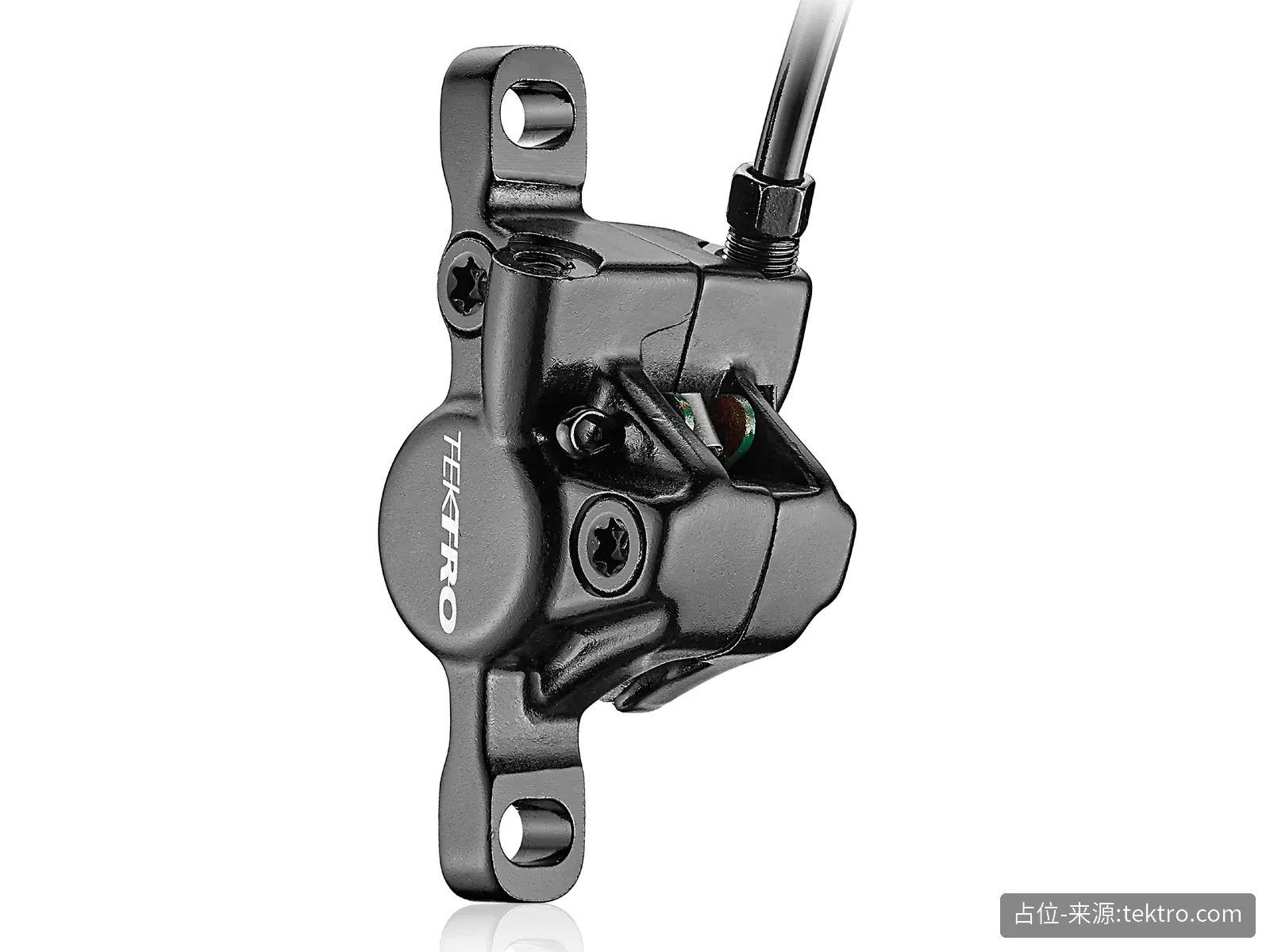

The HD-E350 is Tektro’s OE hydraulic disc brake for city and trekking e-bikes. It is an open system with a two-piston forged-aluminium caliper and a low-noise resin pad.
The cast-aluminium lever has a three-finger blade, reach adjustment and a two-piece clamp, so it can be fitted without removing grips. A cut-off sensor in the lever tells the controller to stop the motor when the brake is pulled; Tektro rates it at up to 10W, 200VDC, 0.1 Ω and 0.5A DC.
Tektro designs it for 1.8 mm rotors. Claimed weight is 302 g front and 322 g rear, without rotor, adapter or bolts.
Specifications
| Parameter | Value |
|---|
| Brake type | Hydraulic disc |
| Material | Forged aluminium caliper, cast aluminium lever |
| Weight | 302 g |
Models & specifications
| Variant | Spec |
|---|
| HD-E350 front | 302 g, black |
| HD-E350 rear | 322 g, black |
Compatibility
- E-bike controllers with brake cut-off input
Highlights
- Cut-off: built-in sensor.
- Caliper: 2-piston, forged aluminium.
- Lever: reach adjust, two-piece clamp.
FAQ
Does it cut motor power?
Yes, Tektro lists a built-in power cut-off sensor (10W / 200VDC / 0.5A DC max).
Which rotor thickness?
Tektro specifies 1.8 mm rotors.
Wholesale, quote-only. Tell us the quantity, system (Bafang / other), cable length and connector you need and we will reply with a quotation.
