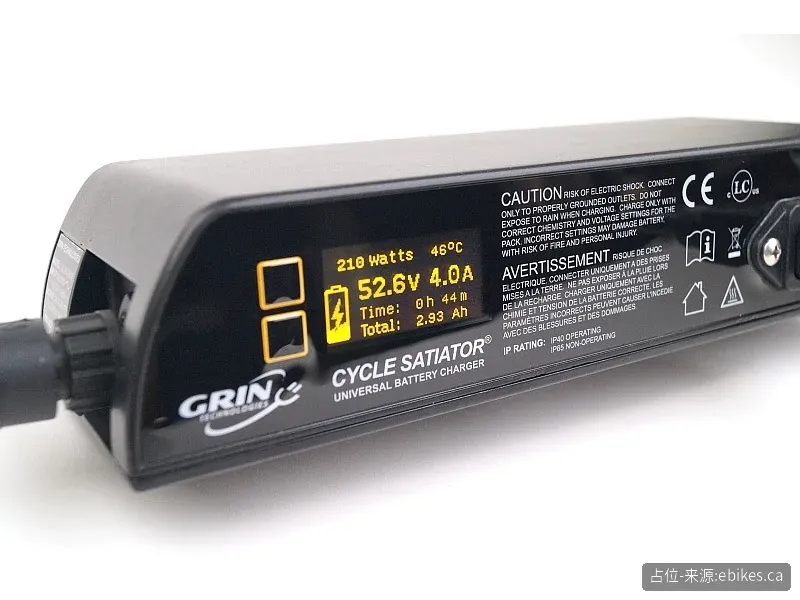

The Cycle Satiator is Grin’s programmable charger for e-bike shops and fleets that handle many different packs. One unit covers 24 to 52V nominal batteries: it outputs 12–63V at up to 8A, limited to 360W, and stores up to 20 charge profiles.
The enclosure is sealed and fan-free, so it can be carried on the bike, and Grin quotes 95% efficiency at 230V input. A 72V model with 20–103V output at up to 5A is also listed by Grin.
The standard model has a 3-pin XLR output; check the plug of the battery before ordering.
Specifications
| Parameter | Value |
|---|
| Charger output voltage | 12–63 V |
| Charger output current | 8 A |
| Input voltage | 100–240 VAC |
| Protections | Over-temperature |
| Weight | 1060 g (1.06 kg) |
Models & specifications
| Variant | Spec |
|---|
| Standard 48V 8A (CG-Satiator4808) | 12–63V, 0–8A, 360W, XLR |
Compatibility
- 24–52V nominal Li-ion, NiMH and lead-acid packs
Highlights
- Output: 12–63V, 0–8A, 360W max.
- Profiles: 20 programmable.
- Enclosure: sealed, fan-free.
FAQ
Can it charge a 72V battery?
Not the standard model; Grin lists a separate 72V version with 20–103V output at up to 5A.
What connector does it use?
The standard 48V 8A model has a 3-pin XLR output.
Wholesale, quote-only. Tell us the quantity, system (Bafang / other), cable length and connector you need and we will reply with a quotation.
