Bafang SR PA232 / PA242 Bottom-Bracket Torque & Cadence SensorBafang SR PA232 / PA242 Bottom-Bracket Torque & Cadence Sensor 2

Bafang SR PA232 / PA242 Bottom-Bracket Torque & Cadence Sensor

Bafang bottom-bracket torque and cadence sensor for hub-motor bikes: 32 pulses per revolution, JIS square-taper shaft, BC1.37" × 24T cups, CE / UL2849.

At a glance

Brand
Bafang
Part type
Sensors
Model
SR PA232.32.ST / SR PA242.32.ST
Application
Bafang hub-motor drive systems
  • Torque & cadence sensing in the bottom bracket
  • 32 signals per crank revolution
  • JIS square-taper shaft, 148 or 160 mm
  • BC1.37" × 24T threaded cups
  • 150 / 950 mm cable, G6.4.2 connector
  • CE / UL2849
Get a Quote

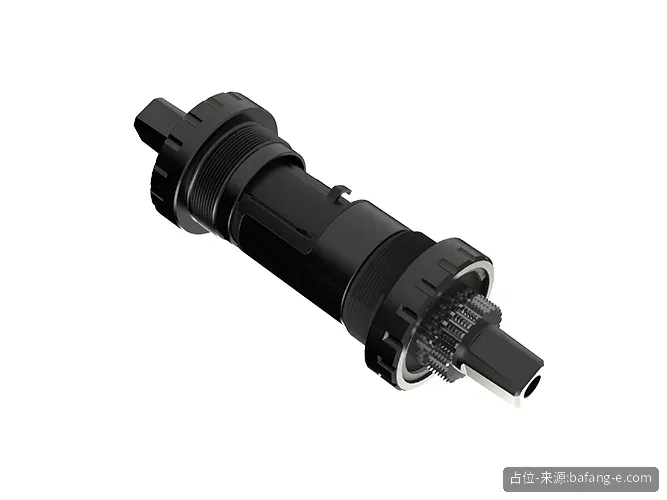

The SR PA232 and PA242 replace the bottom bracket of a hub-motor bike and measure both pedal force and cadence, so the controller can give torque-proportional assistance instead of on/off PAS.

They use a JIS square-taper spindle in 148 or 160 mm lengths with standard BC1.37” × 24T threaded cups, output 32 signals per crank revolution and come with 150 or 950 mm cables on a G6.4.2 connector.

Specifications

ParameterValue
Sensor typeTorque
BB standardBC1.37” × 24T, JIS square taper
CertificationsCE / UL2849

Models & specifications

VariantSpec
SR PA232.32.ST / SR PA242.32.STJIS, 148 / 160 mm axle, 32 pulses, G6.4.2

Compatibility

  • Bafang drive systems

Highlights

  • ****: Torque & cadence sensing in the bottom bracket.
  • ****: 32 signals per crank revolution.

FAQ

Does it work with other brands of controller?

Bafang lists it for its own systems and connectors; other controllers are not stated.

Wholesale, quote-only. Tell us the quantity, system (Bafang / other), cable length and connector you need and we will reply with a quotation.
