Bafang DP C245.CAN: 1.9-inch TFT display for 36/48/52V Bafang systems, 4 or 6 assist modes, Bafang Go app, IP X6, CE / UL2849.
At a glance

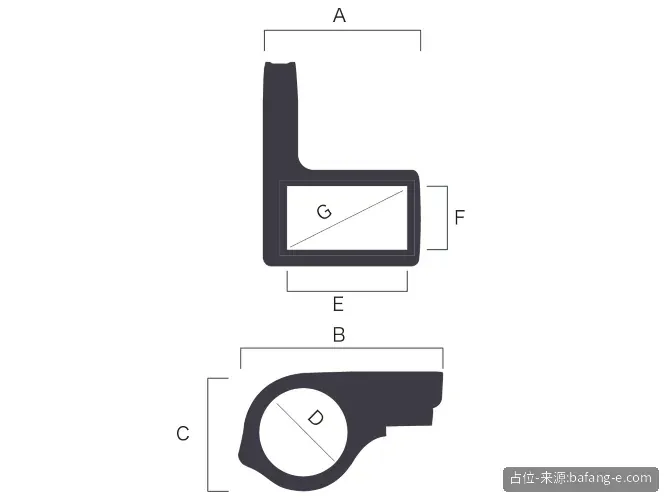

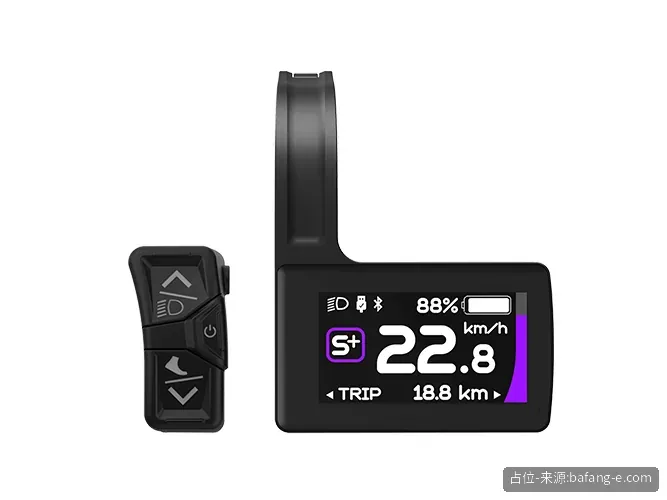

The DP C245.CAN is a Bafang OEM display for its 36, 48 and 52 V drive systems. At 57 × 73 mm it is a compact centre-mount unit with a 1.9-inch colour screen and a separate control unit (250–350 mm cable).
It shows speed, trip distance, battery capacity, power and error codes, supports walk assistance and automatic or manual light control, and connects to the Bafang Go app.
It is an OEM part for Bafang systems; confirm the controller, cable length and connector before ordering.
| Parameter | Value |
|---|---|
| Screen type | TFT |
| Screen size | 1.9 in |
| Display protocol | CAN |
| Display voltage | 36 / 48 / 52 V |
| Certifications | CE / UL2849 |
| Variant | Spec |
|---|---|
| DP C245.CAN | 1.9” TFT, Ø 25.4 / 31.8 / 35 mm clamp, IP X6 |
Bafang lists it for its own systems only; other controllers are not stated.
36, 48 and 52 V nominal.
Wholesale, quote-only. Tell us the quantity, system (Bafang / other), cable length and connector you need and we will reply with a quotation.
