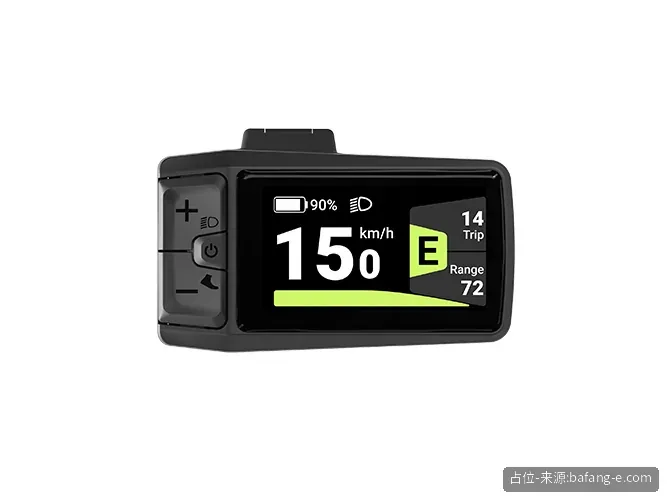

Bafang DP C080.CB: 1.9-inch TFT display for 36/48/52V Bafang systems, 4 or 6 assist modes, Bafang Go app, IP X7, CE / UL2849.
At a glance
The DP C080.CB is a Bafang OEM display for its 36, 48 and 52 V drive systems. It is an all-in-one, handle-end unit: the 1.9-inch screen and buttons sit together at the grip end on a 22.2 mm bar, and it is rated IP X7.
It shows speed, trip distance, battery capacity, power and error codes, supports walk assistance and automatic or manual light control, and connects to the Bafang Go app.
It is an OEM part for Bafang systems; confirm the controller, cable length and connector before ordering.
| Parameter | Value |
|---|---|
| Screen type | TFT |
| Screen size | 1.9 in |
| Display voltage | 36 / 48 / 52 V |
| Certifications | CE / UL2849 |
| Variant | Spec |
|---|---|
| DP C080.CB | 1.9” TFT, Ø 22.2 mm clamp, IP X7 |
Bafang lists it for its own systems only; other controllers are not stated.
36, 48 and 52 V nominal.
Wholesale, quote-only. Tell us the quantity, system (Bafang / other), cable length and connector you need and we will reply with a quotation.
