Bafang DP C010.CN 4.0" TFT E-Bike Display

Bafang DP C010.CN: 4.0-inch TFT display for 36/48/52V Bafang systems, 4 or 6 assist modes, Bafang Go app, IP X6, CE / UL2849.

Brand: Bafang
Part type: Displays
Model: DP C010.CN
Application: Bafang drive systems (36 / 48 / 52 V)

0" TFT screen, 4 or 6 assist modes
36 / 48 / 52 V systems

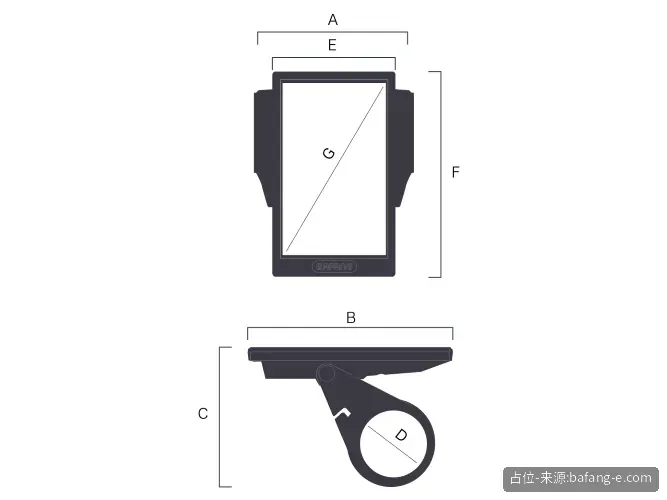

Handlebar clamp Ø 22.2 / 25.4 / 31.8 / 35 mm
USB-C charging 5V 1A
Walk assist, auto/manual light control, Bafang Go app
IP X6; CE / UL2849

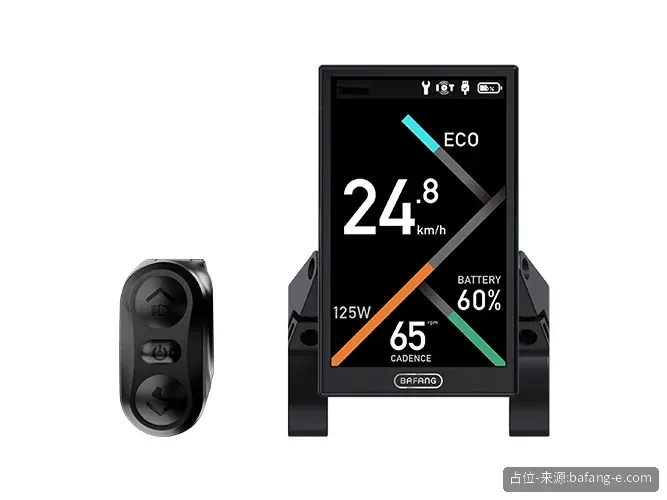

The DP C010.CN is a Bafang OEM display for its 36, 48 and 52 V drive systems. It is the large-screen option: a 4.0-inch centre-mount TFT with a clock, three UI layouts and six menu languages (EN / DE / NL / FR / IT / CZ).

It shows speed, trip distance, battery capacity, power and error codes, supports walk assistance and automatic or manual light control, and connects to the Bafang Go app.

It is an OEM part for Bafang systems; confirm the controller, cable length and connector before ordering.

Specifications

Parameter	Value
Screen type	TFT
Screen size	4 in
Display voltage	36 / 48 / 52 V
Certifications	CE / UL2849

Models & specifications

Variant	Spec
DP C010.CN	4.0” TFT, Ø 22.2 / 25.4 / 31.8 / 35 mm clamp, IP X6

Compatibility

Bafang drive systems

Highlights

Screen: 4.0” TFT.
Rating: IP X6.
App: Bafang Go.

FAQ

Does it work with non-Bafang controllers?

Bafang lists it for its own systems only; other controllers are not stated.

Which voltages?

36, 48 and 52 V nominal.

Wholesale, quote-only. Tell us the quantity, system (Bafang / other), cable length and connector you need and we will reply with a quotation.
